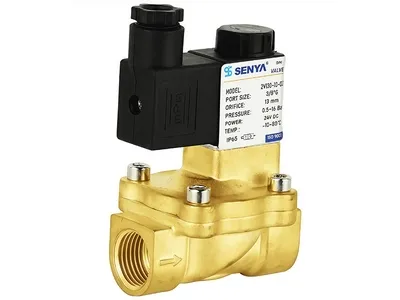

2V Series Brass 2/2-Way Solenoid Valve
- Direct Acting (DN08) / Pilot Operated (DN10-DN25), Normally Closed
- Port Size: 1/8"–1"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0.5–1.6MPa
- Media: air, water, oil, gas
2V series solenoid valves includes the 2V025 direct-acting solenoid valve and the 2V130 / 2V250 pilot-operated solenoid valves.
- Direct-acting, normally closed (NC) 2/2-way solenoid valve with high sensitivity for rapid switching
- Compact design with a heat-resistant brass body, and a Class B coil for stable operation
- Pilot-operated 2/2-way solenoid valves with low energy consumption and large flow capacity
- Low-pressure start and operating pressure differential ﹤0.05MPa
- Designed with a heat-resistant brass body, Class B compliant coil, and NBR rubber sealing

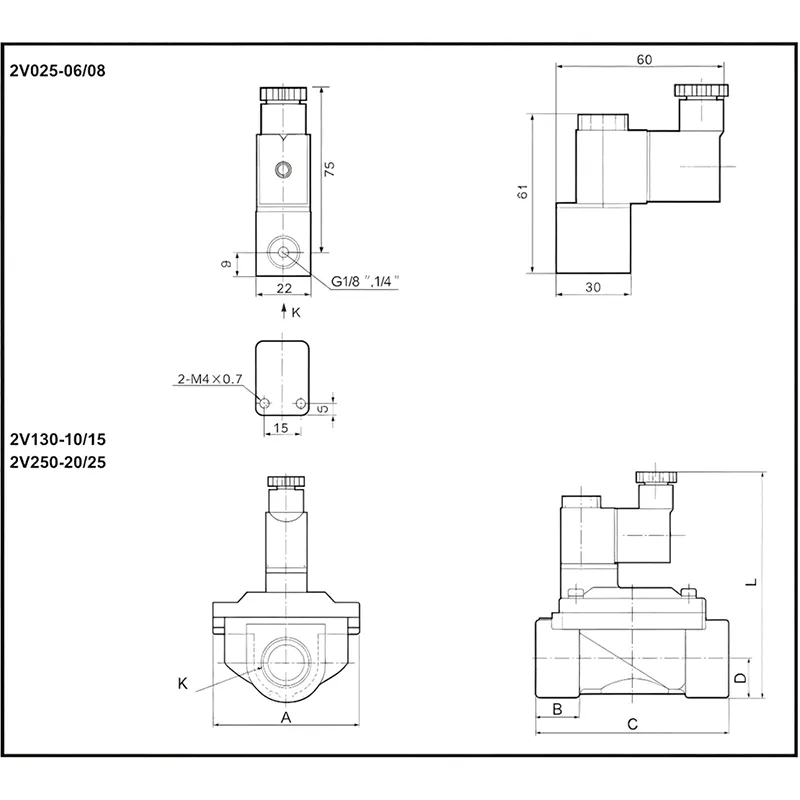

| Model | Port Size (K) | A | B | C | D | L |
|
|
3/8" | 48 | 16 | 66 | 13 | 101 |
|
|
1/2" | 48 | 16 | 66 | 13 | 101 |
|
|
3/4" | 78 | 25 | 102 | 20 | 118 |
|
|
1" | 78 | 25 | 102 | 20 | 118 |
| Category |
|
||
| Mode of operation | Direct acting/pilot operated | Port size | 1/8"-1" |
| Series | 2V | Function | Normally closed (NC) |
| Body material | Brass | Wiring | Flying leads/DIN connector/Waterproof coil |
| Control method | Solenoid valve | Protection level | IP43/IP67/IP68 |
| Operating pressure | 0.5-1.6MPa | Mounting | Bracket required |
| Sealing material | NBR, EPDM, Viton | Recommended installation method | Horizontally or vertically |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
