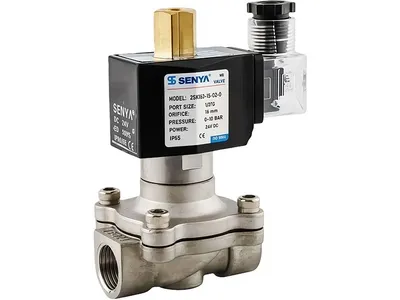

2SK Series Stainless Steel 2/2-Way Solenoid Valve
- Direct Acting, Normally Open
- Port Size: 1/8"–2"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas, steam
2SK series is a stainless steel solenoid valve designed to maintain continuous flow during power-off conditions. It is made from corrosion-resistant stainless steel (304/316), the valve offers a durable and compact structure, and provides fast response. The normally open (NO) configuration effectively reduces energy consumption while extending service life. Optional intelligent energy-saving coils and high-protection housings (IP67/IP68) offer dependable and cost-effective fluid control solutions in harsh or outdoor environments.
- Normally open design keeps the valve open during power-off conditions, ensuring uninterrupted media flow and system safety
- Durable stainless steel body (304 or 316 optional) with strong corrosion resistance
- Reliable zero-pressure start and direct-acting operation with fast response and large flow capacity
- Optional IP67/IP68 coil protection, which is suitable for humid, dusty, or outdoor environments
- Intelligent coil power adjustment reduces energy use by up to 30%, lowers heat generation, and extends service life
- Features a compact structure that enables flexible installation and easy integration into existing system/equipment or limited space
This solenoid valve is widely used in fluid control scenarios where powered-off protection and energy-saving performance are required, such as:
- Industrial automation control systems
- Water treatment systems
- Agricultural irrigations
- Chemical processing equipment

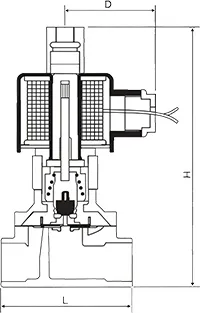

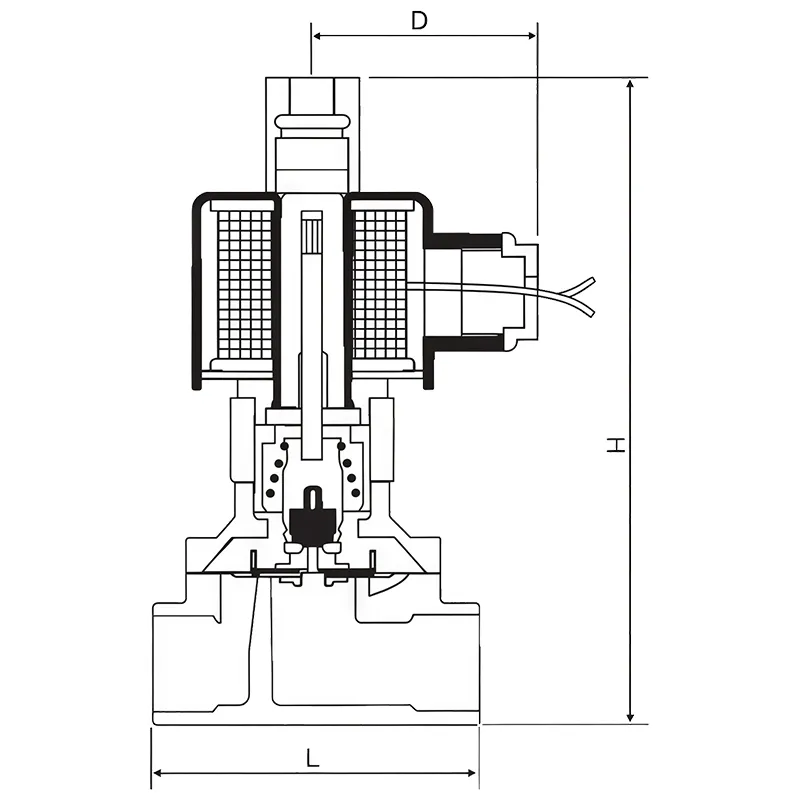

| Model | Port Size | H | L | D |
|
|
1/8" | 48 | 100 | 62 |
|
|
1/4" | 53 | 105 | 62 |
|
|
3/8" | 66 | 126 | 62 |
|
|
1/2" | 66 | 126 | 62 |
|
|
3/4" | 70 | 130 | 62 |
|
|
1" | 92 | 139 | 62 |
|
|
1"-1/4" | 112 | 186 | 62 |
|
|
1"-1/2" | 123 | 197 | 62 |
|
|
2" | 168 | 225 | 62 |
| Note: Valves can be mounted in any position unless installation restrictions are specified. | ||||
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/8"–2" |
| Series | 2SK | Function | Normally open (NO) |
| Body material | SUS304 (316/316L optional) | Wiring | Flying leads/DIN connector/Waterproof coil |
| Control method | Solenoid valve | Protection level | IP43/IP65/IP67/IP68 |
| Operating pressure | 0-1.0MPa | Mounting | Bracket required |
| Sealing material | NBR, Viton, EPDM, Silicone | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
