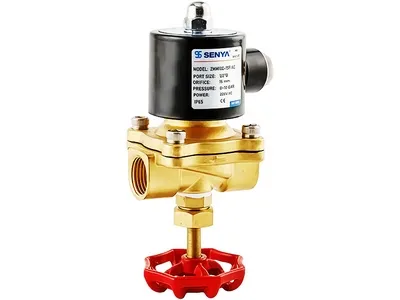

2WM Series Brass 2/2-Way Solenoid Valve
- Pilot Operated, Normally Closed
- Port Size: 1/4"–2"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0.5–1.6MPa
- Media: air, water, oil, gas
2WM series is an innovative dual-control solenoid valve integrating manual and electromagnetic actuation, developed specifically for fire-emergency scenarios, with manual-priority control. Constructed with a fire-resistant brass body and equipped with a distinctive red manual knob, this valve allows for fast one-hand emergency operation. The valve provides excellent sealing performance and high-temperature endurance, ensuring reliable activation even under extreme fire-site conditions. It provides both automated efficiency and manual override as a dual safeguard for modern fire-protection systems.
- Manual-priority operation with a red quick-action knob for one-hand emergency activation
- Optional high-temperature diaphragm ensures sealing integrity under fire conditions and full brass body corrosion resistance
- IP65-rated protection against dust and low-pressure water spray for complex installations
- Manual-release mechanism at the bottom for mechanical operation during power loss
- Supports horizontal or vertical installation, with a compact structure ideal for space-limited environments
- Combines automatic solenoid actuation with manual intervention to ensure standby safety and uninterrupted operation
This solenoid valve is widely applied in fire-protection systems across commercial buildings, industrial facilities, and public infrastructure, where high reliability and temperature endurance are critical, such as:
- Fire hydrant systems
- Automatic fire sprinkler systems
- Foam fire extinguishers
- Gas-based fire-extinguishing systems
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/4"–2" |
| Series | 2WM | Function | Normally closed (NC) |
| Body material | Brass | Wiring | Flying leads/DIN connector |
| Control method | Solenoid valve/override | Protection level | IP43/IP67 |
| Operating pressure | 0–1.0MPa | Mounting | Bracket required |
| Sealing material | NBR, Viton, EPDM, Silicone | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
