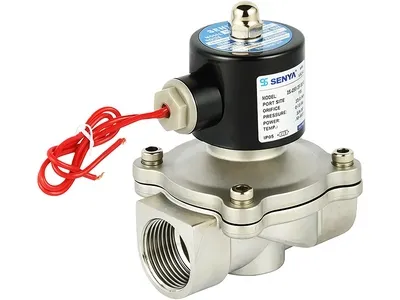

2S Series Stainless Steel 2/2-Way Solenoid Valve
- Direct Acting, Normally Open
- Port Size: 1/8"–2"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas, steam
2S series solenoid valve is engineered for corrosive media and demanding industrial fluid-control environments. Constructed from high-performance AISI 304/316 stainless steel and finished with precision electropolishing, with optional sealing materials of FKM or PTFE available, the valve provides excellent resistance to acids, alkalis, ozone exposure, chlorines, and other harsh environments. The valve delivers millisecond-level response, low maintenance, and reliable performance with protection ratings up to IP65/IP67/IP68, combining reliability, energy efficiency, and low maintenance needs.
- Full stainless steel body with electropolished finish, ensuring corrosion resistance against strong acids, alkalis, ozone-rich media and other highly corrosive media
- Optional FKM or PTFE sealing materials, extending service life by up to 300% in oxidative environments
- Copper-wound aluminum coil combining energy efficiency and over 1 million cycles of service life
- Supported protection rating IP65/IP67 and explosion-proof requirements
- Available in multiple port sizes (1/8"–2") and NPT/BSPP thread options, operating at 0–10 bar and heat resistant to 180°
- Passed rigorous salt spray testing, ozone chamber testing, and reliability testing, achieving stable performance with up to 40% lower maintenance costs
- Offers customization according to your needs
This solenoid valve is mainly used in specialized environments with corrosive media or high purity requirements, such as:
- Ozone generators
(concentration 0–200 g/m³) - Chemical dosing systems (pH 1–14)
- Semiconductor manufacturing
- Pharmaceutical processing
- Industrial water treatment
- Air compressors
- Car wash
- Laundry equipment

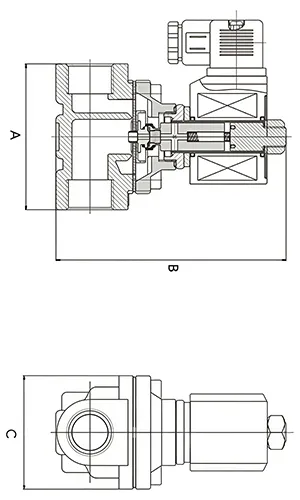

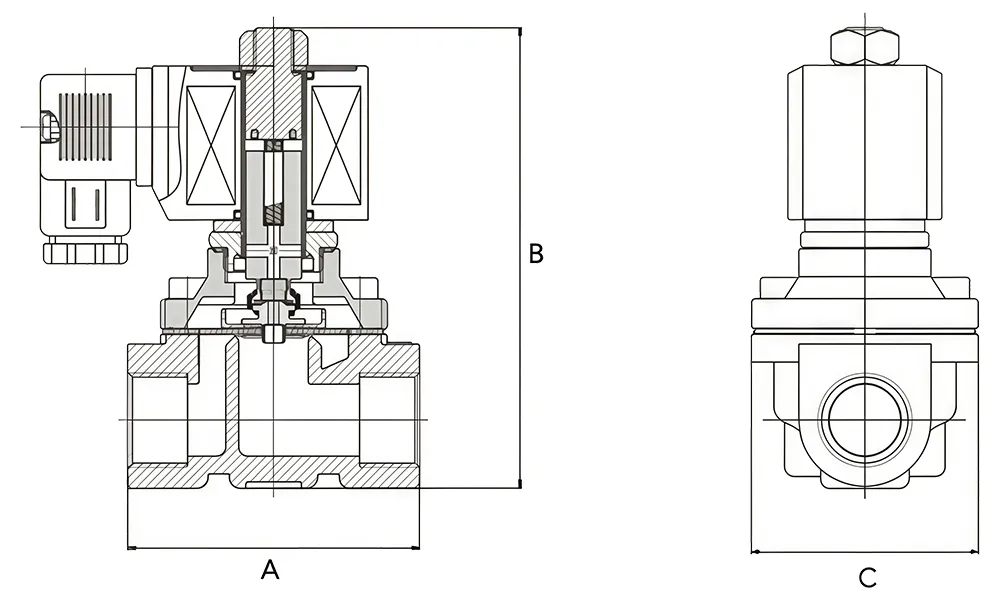

| Port Size | A | B | C |
| 1/8" | 34 | 76 | 34 |
| 1/4" | 34 | 76 | 34 |
| 3/8" | 44 | 91 | 44 |
| 1/2" | 69 | 106 | 57 |
| 3/4" | 73 | 114 | 57 |
| 1" | 73 | 114 | 57 |
| 1"-1/4" | 112 | 150 | 86.5 |
| 1"-1/2" | 123 | 160 | 94 |
| 2" | 165 | 183 | 123 |
| Note: Valves can be mounted in any position unless installation restrictions are specified. | |||
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/8"–2" |
| Series | 2S | Function | Normally closed (NC) |
| Body material | SUS304 (316/316L optional) | Wiring | Flying leads/DIN connector/Waterproof coil |
| Control method | Solenoid valve | Protection level | IP43/IP67/IP68 |
| Operating pressure | 0-1.0MPa | Mounting | Bracket required |
| Sealing material | NBR, Viton, EPDM, Silicone | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-

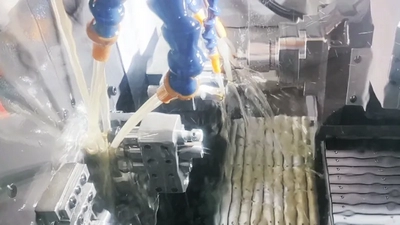

Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-

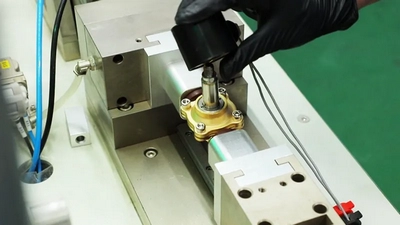

Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-

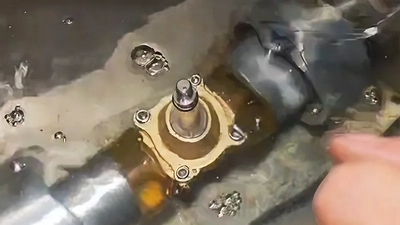

Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-

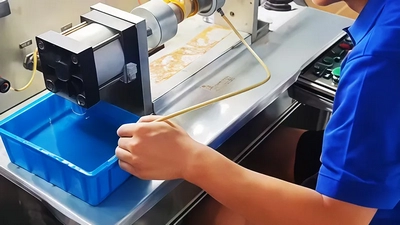

Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
