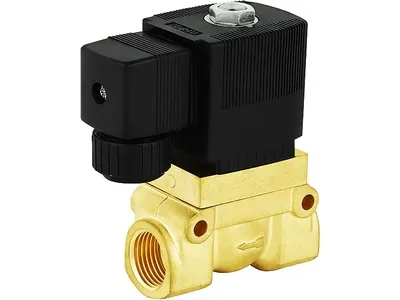

5404 Series Brass 2/2-Way Solenoid Valve
- Pilot Operated, Normally Closed
- Port Size: 1/4"–1"
- Fluid Temperature: 150°C (180℃ optional)
- Operating Pressure: 0.5–5.0MPa
- Media: air, water, oil, gas, steam
5404 series high-pressure pilot-operated solenoid valve is designed with an operating pressure of 0.5–50 bar, offering outstanding pressure and temperature resistance. This valve features a pilot piston structure with PTFE sealing for quick response, stable operation, effective performance with corrosive media, and continuous high-intensity cycles. The robust, modular designed combines high flow and precision control, while significantly reducing maintenance frequency and overall operating costs.
- Supports a wide pressure range (0.5–50 bar) with quick response and strong pressure resistance
- Modular design allows fast replacement of key components and reduces downtime, only requiring simple maintenance
- Optimized flow channel for high flow and low pressure loss, suitable for gases, steam, and various corrosive media
- Compact and durable structure with multiple thread options (NPT/BSPP/SAE) and DN25 port size, ideal for continuous high-pressure operation
- Balanced piston clearance design enhances reliability under high temperature and enables the valve to be used as a compressor safety valve
This 2-way solenoid valve provides reliable control of high-pressure, corrosive media, and high-temperature gases and steam (≤150°C/optional 180°C). It is suitable for:
- Hydraulic systems
- Oil and gas processing equipment
- Chemical injection units
- High-pressure washers
- Industrial automation flow-control systems
- Compressor safety pressure relief

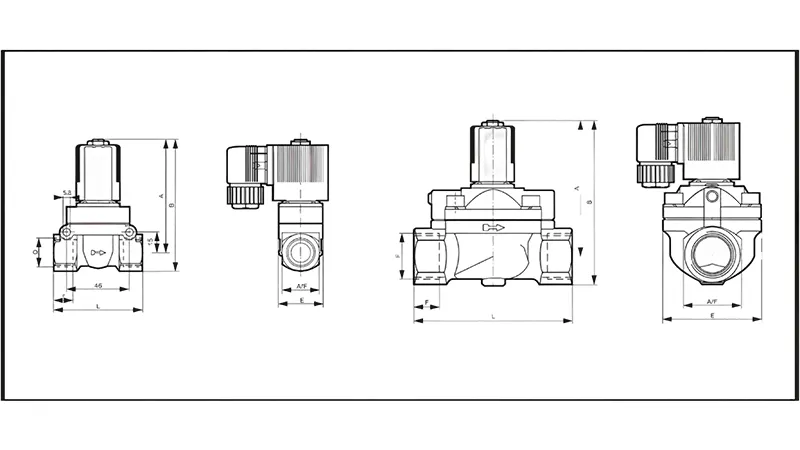

| Model | Port Size | Orifice | A | B | F | E | L | A/F |
|
|
1/2" | 12.0 | 84 | 98 | 13 | 32 | 63.5 | 28 |
|
|
1/2" | 15.0 | 75 | 89 | 13 | 32 | 63.5 | 28 |
|
|
3/4" | 20.0 | 125 | 125 | 16 | 60 | 91 | 41 |
|
|
1" | 25.0 | 125 | 125 | 16 | 60 | 91 | 41 |
| Category |
|
||
| Mode of operation | Pilot operated | Port size | 1/4"–1" |
| Series | 5404 | Function | Normally closed (NC) |
| Body material | Brass | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65/IP67 |
| Operating pressure | 0.5–5.0MPa | Mounting | Bracket required |
| Sealing material | PTFE | Recommended installation method | Horizontally |
| Fluid temperature | 150℃ | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
