Brass 2/2-Way Solenoid Valve, 0955 Series
  • Brass 2/2-Way Solenoid Valve, 0955 Series
  • Brass 2/2-Way Solenoid Valve, 0955 Series
  • Brass 2/2-Way Solenoid Valve, 0955 Series

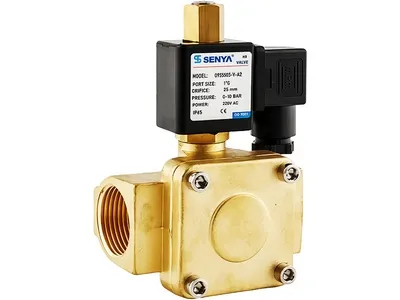

0955 Series Brass 2/2-Way Solenoid Valve

  • Pilot Operated, Normally Open
  • Port Size: 1/4"–2"
  • Fluid Temperature: -5°C to 80°C (120℃ optional)
  • Operating Pressure: 0–1.6MPa
  • Media: air, water, oil, gas

0955 Series solenoid valve is a high-performance, normally-open (NO), pilot-operated valve engineered for precise industrial fluid control applications. It adopts an innovative side-mounted reinforced diaphragm structure and modular design for easy maintenance and an extended service life exceeding 500,000 cycles. With a wide pressure range (0–16 bar) and strong media adaptability, the valve supports multi-directional installation at 360° angle. This solenoid valve is fully compliant with ISO 13845:2016 standards and available with CE and RoHS certifications, ensuring stability and quality in demanding conditions.

Request a Quote
PDF icon
Features
  • Supports 360° omnidirectional installation, overcoming positional limits of traditional valves
  • Provides high flow rate with fast on/off response and consistent performance across a wide pressure range
  • Features a reinforced diaphragm for higher fatigue resistance and a service life exceeding 500,000 cycles
Applications

This solenoid valve is widely used in industrial environments that control air, water, light oil, and neutral chemical media for long-term continuous operations with strict requirements:

  • Water treatment systems
  • Chemical processing systems
  • Pneumatic control systems
  • Industrial automation control systems

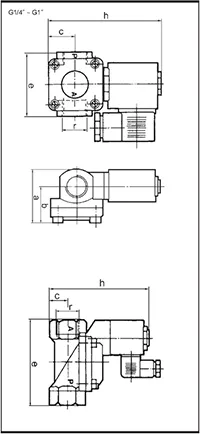

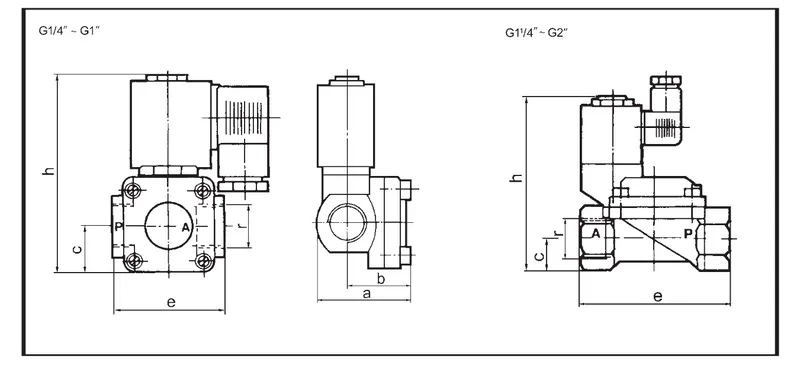

Dimensions (mm)
Model Port Size (r) Function Orifice A - C - H
0927000 1/4" Normally closed (NC) 8mm 45 31.5 22 53 97
0927100 3/8" Normally closed (NC) 10 mm 45 31.5 22 53 97
0927200 1/2" Normally closed (NC) 12 mm 45 31.5 22 53 97
0927300 3/4" Normally closed (NC) 20 mm 65 44 30 86 113
0927400 1" Normally closed (NC) 25 mm 65 44 30 86 113
0927500 1"-1/4" Normally closed (NC) 32 mm 95 47 31 132 136
0927600 1"-1/2" Normally closed (NC) 40 mm 95 47 31 132 136
0927700 2" Normally closed (NC) 50mm 112 55 39.5 160 155
0955105 1/4" Normally open (NO) 8mm 45 31.5 22 53 114
0955205 3/8" Normally open (NO) 10 mm 45 31.5 22 53 114
0955305 1/2" Normally open (NO) 12mm 45 31.5 22 53 114
0955405 3/4" Normally open (NO) 20mm 65 44 30 86 130
0955505 1" Normally open (NO) 25mm 65 44 30 86 130
0955605 1"-1/4" Normally open (NO) 32mm 95 47 31 132 153
0955705 1"-1/2" Normally open (NO) 40 mm 95 47 31 132 153
0955805 2" Normally open (NO) 50 mm 112 55 39.5 160 172
Brass 2/2-Way Solenoid Valve, 0955 Series
Specifications
Category 2/2-way solenoid valves
Mode of operation Pilot operated Port size 1/4"–2"
Series 955 Function Normally open (NO)
Body material Brass Wiring DIN connector
Control method Solenoid valve Protection level  IP65/IP67
Operating pressure 0-1.6MPa Mounting Bracket required
Sealing material NBR, EPDM, Viton Recommended installation method Free-mounting in any angle
Fluid temperature -5°C to 80°C (120℃ optional) Thread options BSP, NPT thread
Videos
    • Videos

      Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.

    • Videos

      Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.

    • Videos

      Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.

    • Videos

      Leak testing using the water immersion method to ensure zero leakage under continuous operation.

    • Videos

      Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
Related Solenoid Valves
View All
Why Choose SENYA’s Solenoid Valves
  • Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
  • Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
  • Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
Other Categories
View All
Specialized in Solenoid Valves &
Pneumatic Components Manufacturing
SENYA specializes in the engineering and manufacturing of solenoid valves and pneumatic components. With strong R&D capabilities and advanced production facilities, we develop standard and customized solutions to meet demanding industrial requirements. Our strict quality system includes 30 quality inspections and performance tests, ensuring every product delivers long-term reliability.
    • Icon
      2004

      SENYA Was Founded

    • Icon
      2,000+

      Standard Components in Stock

    • Icon
      5,000,000+

      Units Produced Annually

It is recommended to choose carefully based on actual site conditions and pressure/flow requirements.

  • Direct-acting solenoid valve: Has a simple structure and low maintenance, but has higher impurities. It is suitable for a high-response environment with a pressure of 1.0MPa or lower.
  • Pilot-operated solenoid valve: Has a double-layer structure, which is suitable for higher pressure (up to 1.6MPa) and larger flow.

2S series solenoid valve can be used with sulfuric acid and hydrochloric acid solutions at concentrations below 10%. For higher concentrations of sulfuric acid, such as 30%, we also offer customized solenoid valves for your selection.

Yes. 2S series valve body is available with 316L stainless steel material. If you need to handle higher concentrations of sulfuric acid, such as 30%, we can also provide customized solenoid valve solutions.
