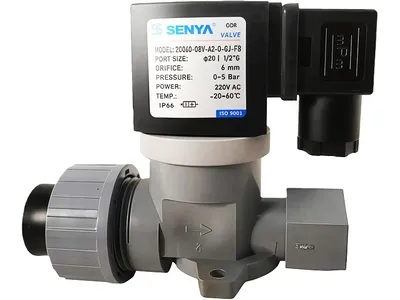

2C Series CPVC 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/2" (Ø20)
- Fluid Temperature: -20°C to 60°C
- Operating Pressure: 0–0.5MPa
- Media: corrosive liquids (sulfuric acids, hydrochloric acids, sodium hypochlorite, and disinfectant solutions)
2C Series solenoid valve is specifically designed for highly corrosive fluids. All wetted parts and internal flow components are made from high-performance CPVC (Chlorinated Polyvinyl Chloride), offering exceptional chemical resistance in environments with pH up to 10. The valve’s dynamic armature structure isolates magnetic and mechanical parts from corrosive media, while a precision filtration system prevents particle intrusion. This design extends the valve’s service life, reduces maintenance frequency, and ensures stable operation under harsh industrial conditions.
- Full CPVC body and wetted components, providing corrosion resistance for harsh chemical environments (pH ≤ 10)
- Patented dynamic armature design completely isolates electrical parts from corrosive media
- Built-in ﹤0.2 mm replaceable precision filter prevents impurity ingress, protecting the valve, and extending service life
- Optional epoxy-encapsulated coil and corrosion-resistant electrical connectors prevent corrosive gas intrusion
- 6 mm high-flow design provides excellent throughput and impurity tolerance
- Adopting a hot-melt connection for fast installation (approx. 3 seconds) and easy maintenance
- Innovative spring and compression system improves durability and supports repeated cycles
This solenoid valve is mainly used in industrial applications that require reliable control of highly corrosive liquids (e.g., 30% sulfuric acid and 30% sodium hydroxide), such as:
- Chemical manufacturing
- Electroplating workshops
- Semiconductor manufacturing
- Industrial wastewater treatment
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/2" (Ø20) |
| Series | 2C | Function | Normally closed (NC) |
| Body material | CPVC | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65/IP67 |
| Operating pressure | 0–0.5MPa | Mounting | Bottom mounting |
| Sealing material | FKM | Recommended installation method | Horizontally |
| Fluid temperature | -20℃ to 60℃ | Thread options | BSP, NPT thread |
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
