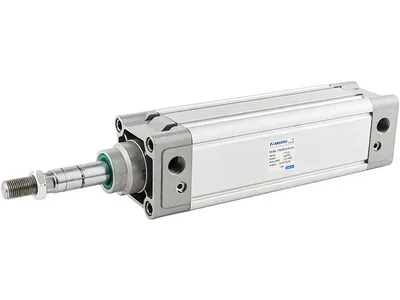

Pneumatic Cylinder, IS015552
DNC series pneumatic cylinder is a high-performance actuator designed for industrial automation. It can operate with compressed air or inert gases (e.g., nitrogen) and supports operating temperature from -20℃ to 80℃, pressure resistance up to 1.0MPa (1.5MPa for special models), and a quick reaction time up to 50ms to ensure quick start-stop performance. This cylinder comes with an IP67 protection level for dust and water resistance.
- ISO 15552-compliant, globally recognized, and easy to replace
- Reinforced aluminum-alloy structure ensures high durability and corrosion resistance.
- Low-friction sealing components deliver smooth motion without stick-slip
- High-load capacity supported by powerful thrust, meeting industrial demands
- Offers a wide bore size options (Ø32mm-Ø125mm) to meet diverse industrial demands
- Precision cushioning design effectively absorbs impact and extends service life
- TPU buffer pad offers superior wear resistance and stability for high-frequency cycles
- Inner wall covered with 3–5µm anti-wear coating, which provides minimal friction, low starting pressure for extended service life
- Custom size: Non-standard bore sizes of Ø12mm-Ø200mm; and stroke length up to 2,000mm
- Mounting options: Flange, foot, thin-type, or special-angle installation
- Material upgrade: In addition to the standard aluminum alloy body, stainless-steel cylinder barrel and piston rod options are available for corrosion-resistant or food-grade applications
- Functional enhancements: Built-in magnetic ring or external high-precision displacement sensor (±0.1mm); adjustable air cushion or hydraulic damper; integrated speed control valve and throttle silencer
- Protection level: Up to IP69K-rating, suitable for high-pressure washdown environments
- Operating conditions: Supports high-temperature (−40°C to 220°C) and vacuum applications
- Interface & compatibility: Multiple port thread standards and accessory pre-installation options available for complex assembly requirements
-

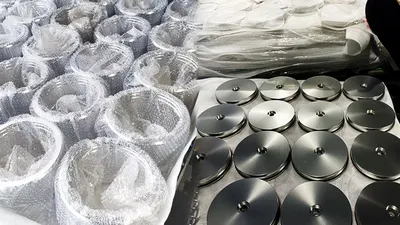

Component ProtectionEnsures precision and specification accuracy during pneumatic cylinder manufacturing.
-

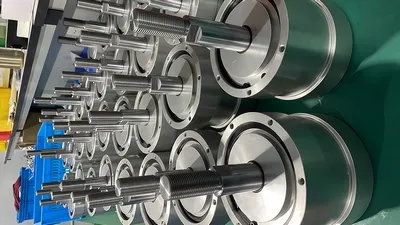

Post-Assembly InspectionVerifies completeness and checks all cylinders’ parts for surface scratches or defects.
-

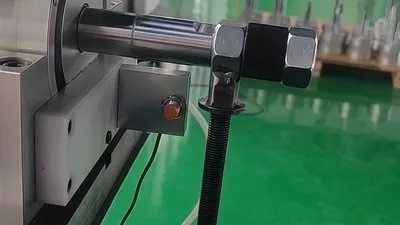

Load TestingConfirms pneumatic cylinder can withstand angular and lateral forces under load.
-

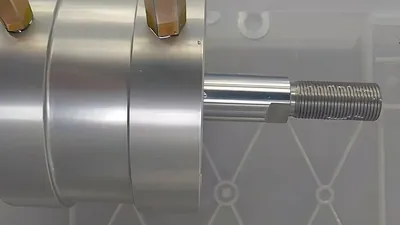

Underwater Immersion TestEnsures the cylinders remain completely airtight with no leakage.
-

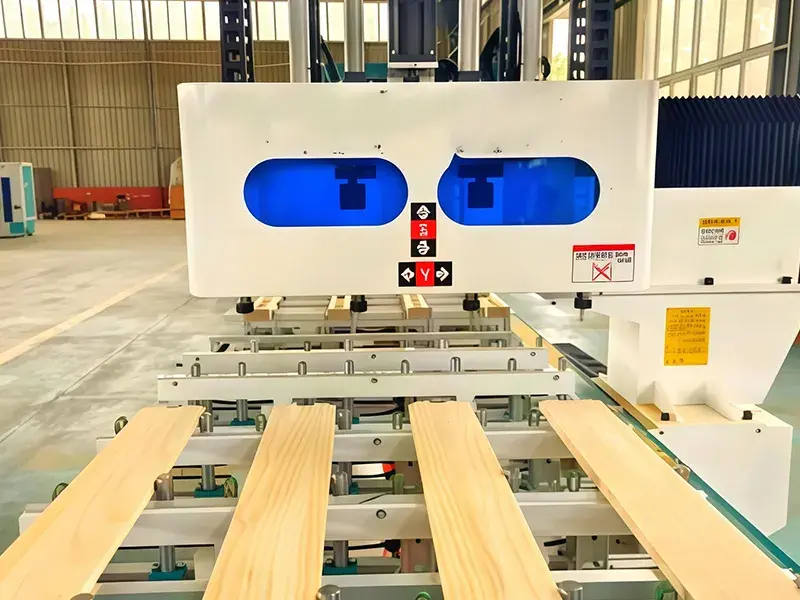

Woodworking MachineryThe pneumatic cylinder fixes cutting tools in place for wood and panel processing.
-

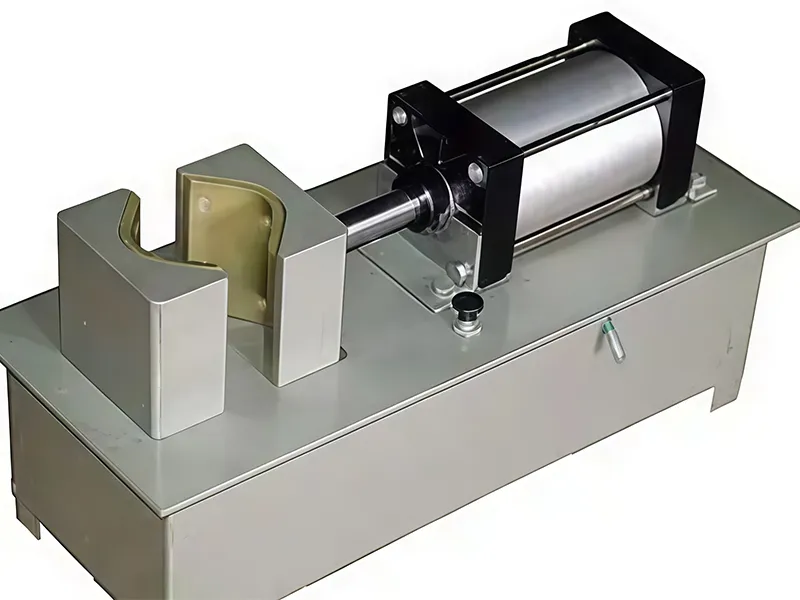

Disassembly FixturesThe pneumatic cylinder secures products for manual assembly and disassembly.
-

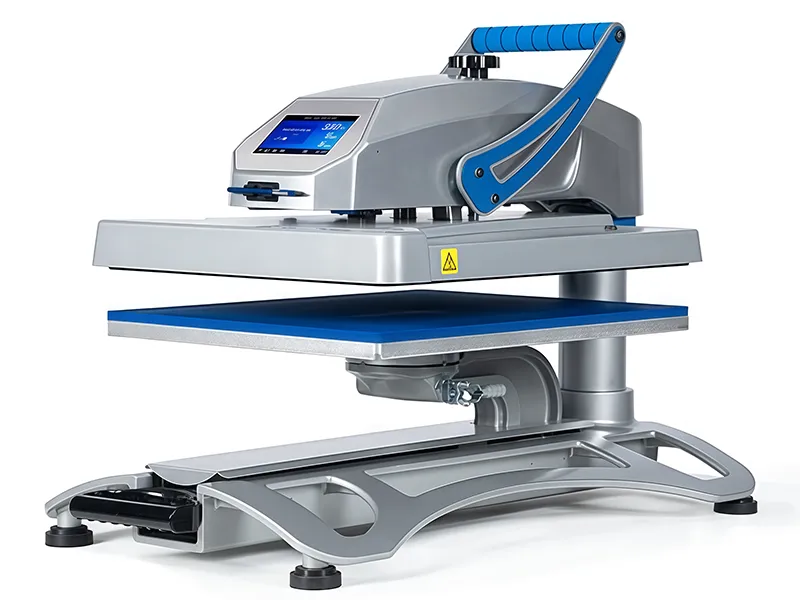

Garment Processing EquipmentThe pneumatic cylinder secures the clothing for the ironing process.
-

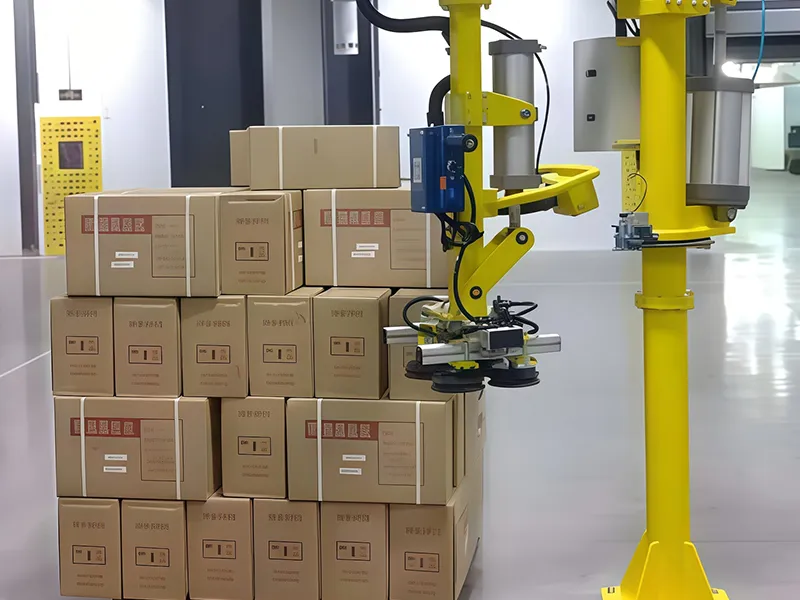

Palletizing MachineryThe pneumatic cylinder controls the robotic arm rotation and pallet stacking movement.
- High cost-effectiveness: Mass production reduces costs, saving 30%-50% compared to imported brands
- Flexible customization: SENYA provides you with drawing/sample development to meet custom requirements (e.g., high-temperature or explosion-proof)
- Factory inspection support: Customers are welcome to visit our production facilities and observe our production process and quality control procedures to verify our capabilities firsthand
