KSD Series Brass 3/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/8"–3/8"
- Fluid Temperature: -5°C to 80°C (-5°C to 120℃)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas
KSD Series is a multifunctional solenoid valve available in both 2/2-way and 3/2-way configurations. It features a compact and durable structure with an operating pressure range of 0-10 bar. This valve is engineered with high-quality materials and precision machining, delivering fast response, low power consumption, and stable switching performance over hundreds of thousands of cycles. This valve supports a wide range of industrial fluid and pneumatic control applications, offering flexible mounting options (horizontal/vertical mounting) and easy maintenance.
- Bottom mounting holes ensure secure installation in vibration-prone environments
- Direct-acting structure provides fast response and low power consumption
- Built with corrosion-resistant brass suitable for various media
- The 3/2-way structure has an integrated top interface, saving installation space and reducing external fittings
- Optimized internal structure supporting high-frequency operation and extends service life
- Available in multiple port sizes, sealing materials, and special coatings customization for different media
- Complies with industry standards, while supporting easy maintenance and quick part replacement
This valve is mainly used in scenarios that involve compressed air, water, hydraulic oil, and other neutral media, such as:
- Automotive sealant dispensing systems
- Industrial automation equipment
- Pneumatic control systems

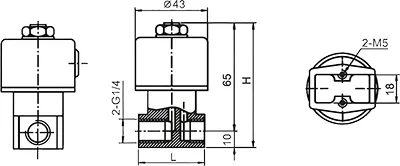

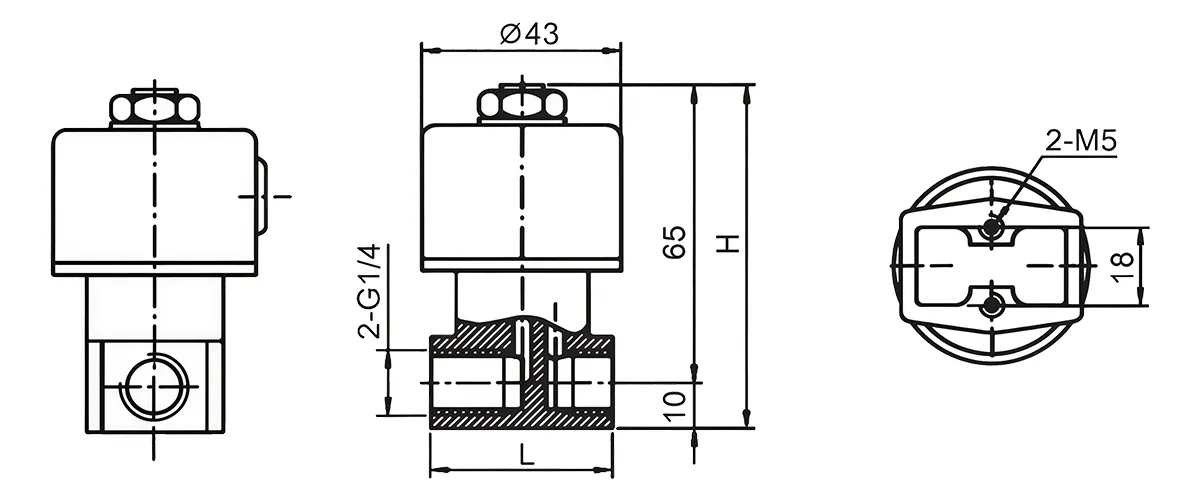

| Model | Port Size | L | H |
|
|
1/4" | 40 | 75 |
|
|
1/4" | 41 | 95 |
|
|
3/8" | 40 | 75 |
|
|
3/8" | 41 | 95 |
| Category |
3/2-way solenoid valves |
||
| Mode of operation | Direct acting | Port size | 1/8"–3/8" |
| Series | KSD | Function | Normally closed (NC), 3/2-way |
| Body material | Brass | Wiring | Flying leads/DIN connector |
| Control method | Solenoid valve | Protection level | IP43/IP65/IP67 |
| Operating pressure | 0–1.0MPa | Mounting | Bottom mounting |
| Sealing material | NBR, EPDM, Viton | Recommended installation method | Horizontally or vertically |
| Fluid temperature | -5°C to 80°C (-5℃ to 120℃) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
