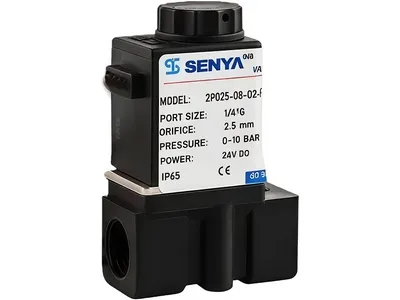

2P Series Nylon 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/8"–1/4"
- Fluid Temperature: -5°C to 80°C (-5°C to 120°C)
- Operating Pressure: 0–0.7MPa
- Media: air, water, oil, gas
2P series is a lightweight solenoid valve designed for the control of mildly corrosive or neutral fluids, while requiring minimal maintenance. Made from glass fiber–reinforced PA66 nylon, the valve is 40% lighter than comparable metal solenoid valves. Its innovative snap-fit quick-repair structure enables core component replacement within 10 seconds, significantly improving maintenance efficiency. Equipped with a precision low-inertia plunger system, the valve provides an ultrafast response (<30 ms) and minimal dead volume, ensuring high flow efficiency. The compact design provides chemical resistance while improving space utilization.
- Reinforced PA66 nylon body resists weak acids and alkalis (pH 4–10) while remaining lightweight and cost-effective
- Ultrafast response (<30 ms) suitable for rapid-cycle and high-frequency control
- Features bottom mounting holes and M4 panel screw holes, supporting both inline and panel mounting for flexible installation
- Optional FKM sealing and built-in filter enhance chemical resistance and extend service life
- IP65-rated protection and optional DIN connector or lead-wire coil
- Has passed rigorous realibility testing and salt spray testing
This valve is mainly used in applications involving weakly corrosive media such as dilute acids, weak alkalis, or chlorinated water, such as:
- Laboratory analytical instruments
- Mobile hydraulic systems
- Low-pressure chemical dosing (≤10 bar)
- Fertigation systems
| Model |
|
|
| Media | Air, water, oil, gas | Air, water, oil, gas |
| Working pattern | Direct acting | Direct acting |
| Function | Normally Closed | Normally Closed |
| Orifice | 2.5mm | 2.5mm |
| CV value | 0.23 | 0.23 |
| Port size | 1/8" | 1/4" |
| Applicable fluid viscosity | ≤20CST | ≤20CST |
| Operating pressure | 0-0.7MPa (0-102Psi) | 0-0.7MPa (0-102Psi) |
| Max. pressure resistance | 1.05MPa (152Psi) | 1.05MPa (152Psi) |
| Fluid temperature range | -5℃ to 80℃ | -5℃ to 80℃ |
| Voltage tolerance | ±10% | ±10% |
| Power consumption | AC: 7VA/50Hz, 9VA/50Hz, DC: 6W |
AC: 7VA/50Hz, 9VA/50Hz, DC: 6W |
| Body material | Engineering plastic (nylon) | Engineering plastic (nylon) |
| Oil seal material | NBR, EPDM, or Viton | NBR, EPDM, or Viton |
-

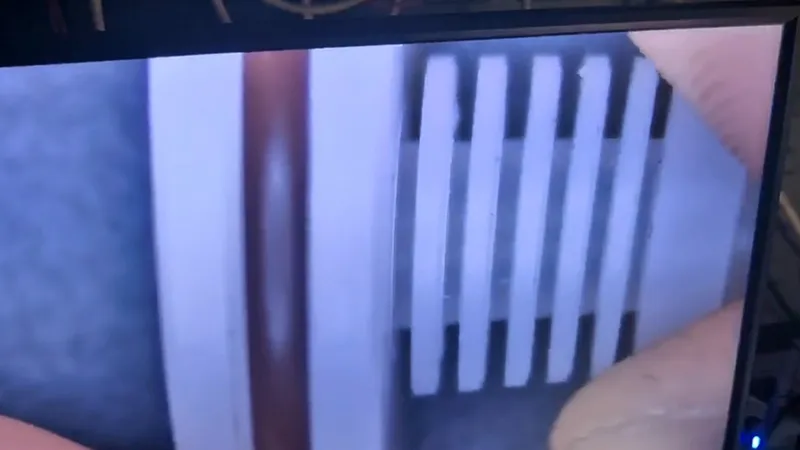

Product Inspection
-

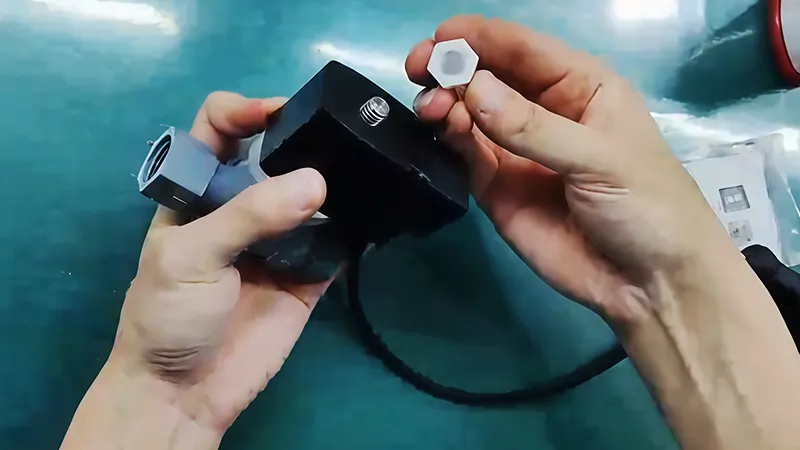

Assembly Process
-

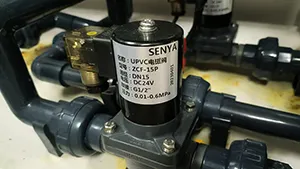

Wastewater Treatment Pipeline SystemThe solenoid valve ensures accurate dosing control used to control the dosing of alkaline liquid for neutralizing acidic wastewater through a precise chemical reaction.
-

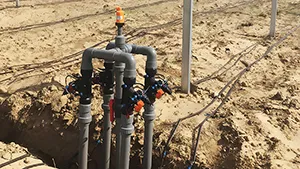

Pesticide Spraying SystemThe nylon valve offers excellent corrosion resistance and stable performance for outdoor pesticide mixing and spraying operations.
-

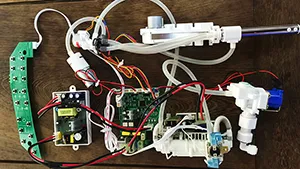

Smart Toilet Flushing SystemThe nylon valve is applied in intelligent toilet flushing devices, offering low cost, compact design, and long service life.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
