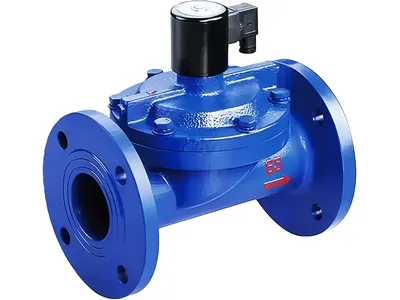

DF Series Cast Iron 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1"–4" (flanged)
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas
DF series is a heavy-duty cast-iron flanged solenoid valve specifically designed for water supply and municipal engineering projects. The valve body is made of high-quality cast iron with a special anti-corrosion coating, providing excellent anti-rust and weather resistance. The valve meets IP65 protection standards, effectively resisting moisture and water spray, and maintaining stable performance in harsh environments.
- High-quality cast iron body with special anti-corrosion surface treatment, ensuring strong rust resistance and long service life in humid and corrosive environments.
- Standard flange connection provides stable installation and excellent sealing to prevent leakage
- Reinforced structure resists water hammer effects and pressure fluctuations, ensuring stable and reliable operation.
- Direct-acting design with low flow resistance, large flow capacity, and high tolerance for media impurities.
- Easy maintenance and operation with multiple flange sizes (1-4 in) and pressure options (0–1.0MPa) for flexible engineering applications
This cast iron solenoid valve is mainly used in environments that are continuously exposed to a humid environment or outdoors, such as:
- Water treatment plants
- Pumping stations
- Water transmission systems
- Municipal irrigation systems (e.g., drinking and wastewater)
- Firewater systems
- Industrial water supply systems

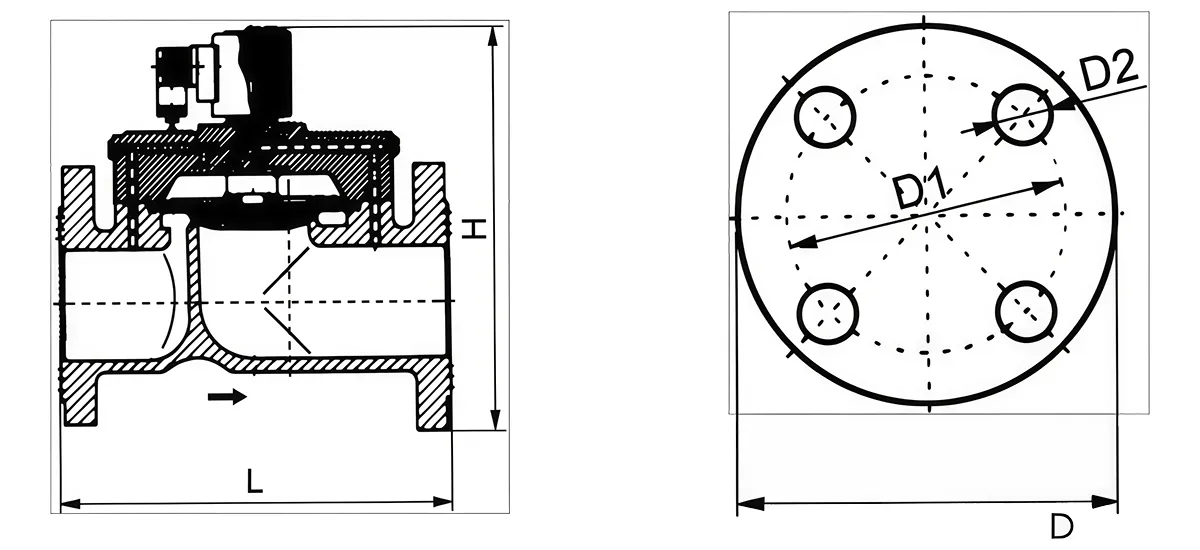

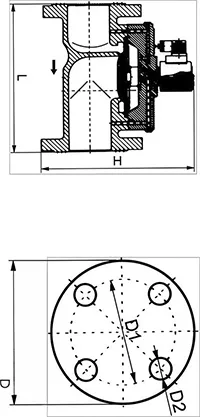

| Model | L | H | D (Flange) | D1 | D2 |
|
|
165 | 196 | 150 | Ø110 | 4-Ø18 |
|
|
195 | 200 | 165 | Ø125 | 4-Ø18 |
|
|
256 | 280 | 185 | Ø145 | 4-Ø18 |
|
|
277 | 287 | 200 | Ø160 | 8-Ø18 |
|
|
350 | 330 | 220 | Ø180 | 8-Ø18 |
|
|
425 | 437 | 250 | Ø210 | 8-Ø18 |
|
|
450 | 460 | 285 | Ø240 | 8-Ø22 |
|
|
560 | 547 | 340 | Ø295 | 12-Ø22 |
| Note: Valves must be mounted in horizontal position. | |||||
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1"–4" (flanged) |
| Series | DF | Function | Normally closed (NC) |
| Body material | Cast iron | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65 |
| Operating pressure | 0-1.0MPa | Mounting | Bracket required |
| Sealing material | NBR | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | Flanged |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
