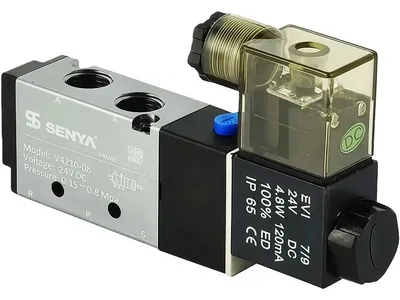

V4 Series Aluminum 5/2-Way Solenoid Valve
- Pilot Operated
- Port Size: 1/8"–1/2" (M5)
- Fluid Temperature: -20°C to 80°C
- Operating Pressure: 0.15–0.8MPa
- Media: air
V4 series is a compact, high-performance directional control valve optimized for industrial pneumatic systems. Its anodized aluminum body ensures excellent corrosion resistance and allows color customization for easy system identification. Adopting high-quality seals and low-friction lubrication technology, the valve delivers fast response with extended service life. Its modular combination design supports both single and double solenoid valves, providing high flow capacity, operational flexibility, and significantly reducing space requirements while simplifying pneumatic integration.
- High-quality sealing and precision piston rod with special lubrication for low friction, extending service life up to tens of millions of cycles
- High-sensitivity pilot head design with fast response and stable magnetic retention
- Supports single and double solenoid valves; the double solenoid model includes a memory function and supports a double-acting actuator
- Optimized flow channel and special bore coating reduce pressure loss and enable low starting pressure without lubrication
- Supports integrated installation and multiple valve combinations, offering flexible pneumatic layout and reduced piping cost
This valve is suitable for industrial environments in tight spaces, high-frequency operations, and systems requiring reliable long-term performance, such as:
- Packaging machinery
- Automated production lines
- Material handling systems
| Category |
|
Sealing material | NBR |
| Mode of operation | Pilot operated | Fluid temperature | -20℃ to 80℃ |
| Series | V4 | Port size | M5-1/2" 1/8"–1/2" (M5) |
| Control method | Directional valve | Wiring | DIN connector |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
