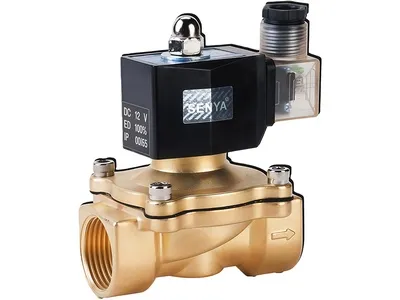

2W Series Brass 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/8"–2"
- Fluid Temperature: -5°C to 80°C (-5℃ to 120℃)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas
2W series solenoid valve is designed for harsh industrial environments. It features a direct-acting structure with a working pressure range of 0-10 bar, making it suitable for various fluid control systems. It provides a zero-pressure start for quick response without requiring minimum operating pressure and ensures stable performance even in low-pressure conditions. In compliance with ISO 9001 and RoHS standards, this valve offers a wide range of customization options.
- Modular design with maintenance-optimized structure for easy assembly, disassembly, and reduced downtime
- Optimized flow channel for high flow capacity and low pressure loss, compatible with unfiltered or viscous media
- Optional intelligent power management reduces energy consumption up to 60%, which saves energy and prevents overheating
- Customizable body (e.g., brass or stainless steel) and sealing materials (NBR, FKM, etc.) to meet different temperature and media conditions
- Optional IP43/IP65/IP68 protection level coil and DIN standards electrical connection ensure compatibility with commonly used industrial control systems
- Car wash
- Laundry equipment
- Air compressors
- Industrial water control systems
- Water pump
- Water treatment systems
Some models comply with FDA standards, making them suitable for food and medical applications.

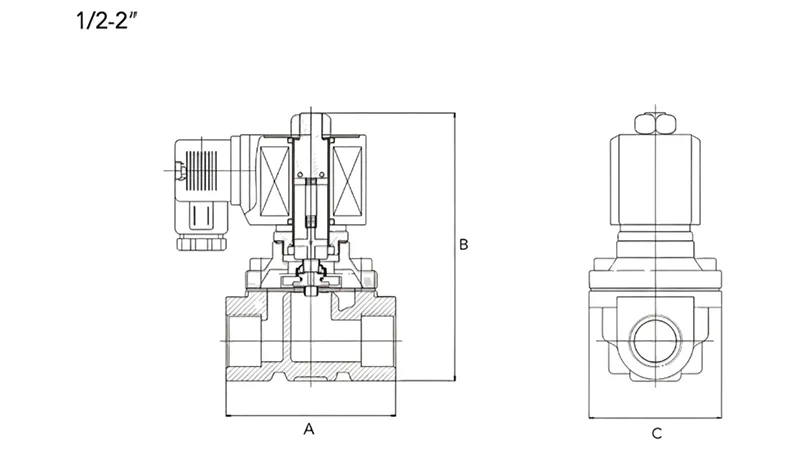

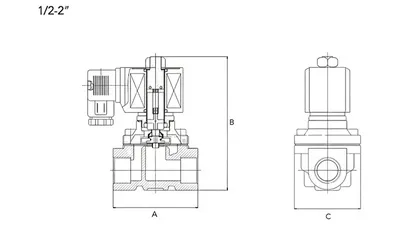

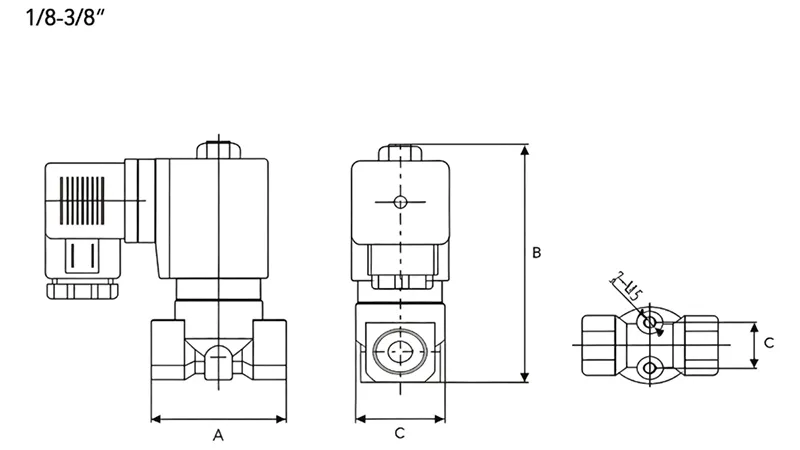

| Port Size | A | B | C |
| 1/8" | 40.5 | 83.5 | 26.8 |
| 1/4" | 40.5 | 83.5 | 26.8 |
| 3/8" | 69 | 106 | 57 |
| 1/2" | 69 | 106 | 57 |
| 3/4" | 73 | 114 | 57 |
| 1" | 73 | 114 | 57 |
| 1"-1/4" | 112 | 150 | 86.5 |
| 1"-1/2" | 123 | 160 | 94 |
| 2" | 165 | 183 | 123 |
| Note: Valves can be mounted in any position unless installation restrictions are specified. | |||
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/8"–2" |
| Series | 2W | Function | Normally closed (NC) |
| Body material | Brass | Wiring | Flying leads/DIN connector/Waterproof coil |
| Control method | Solenoid valve | Protection level | IP43/IP67/IP68 |
| Operating pressure | 0-1.0MPa | Mounting | Bracket required |
| Sealing material | NBR, Viton, EPDM, Silicone | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
