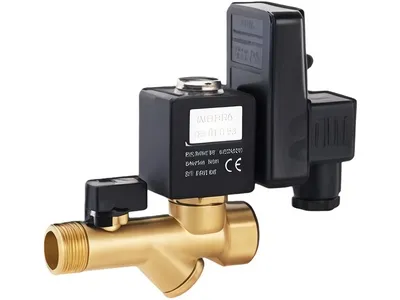

SYPT Series Brass 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/2"
- Fluid Temperature: -5°C to 120°C
- Operating Pressure: 0–1.6MPa
- Media: air, water
SYPT series is a direct-acting, normally closed (NC) electronic drain valve (EDV) designed for condensate management in compressed air systems. It features a built-in stainless-steel filter that traps impurities and debris, protecting internal components and extending service life. The valve is integrated with an intelligent timing mechanism that automatically controls drainage intervals, ensuring stable system pressure and continuous operation even under heavy industrial conditions. The EDV’s built-in filtration system can also address common clogging problems in conventional drainage valves.
The compact, easy-to-install design allows this solenoid valve to be installed in tight spaces, such as near air storage tanks or at low points in the piping system. The automatic operation eliminates manual intervention, reduces exhaust losses to improve system efficiency, and can address low-temperature (down to -5°C), dirt, and blockage issues.
- Automatic timed drainage minimizes manual operation and exhaust loss
- Featuring a built-in filter to prevent contamination and clogging
- Adjustable drainage interval and emission time, with a test button for easy operation
- Provided with CE certification for reliability and safety
- Available in various port sizes and optional anti-freeze accessories
SYPT series electronic drain valve (EDV) integrates an analog solid state timer and a solenoid valve to automatically discharge condensate from compressed air systems at set intervals. EDV is widely used in compressed pneumatic system components, such as:
- Filters
- Separators
- Dryers
- Air storage tanks
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/2" |
| Series | SYPT | Function | Normally closed (NC) |
| Body material | Brass | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65 |
| Operating pressure | 0-1.6MPa | Mounting | Bracket required |
| Sealing material | PTFE | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 120°C | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
