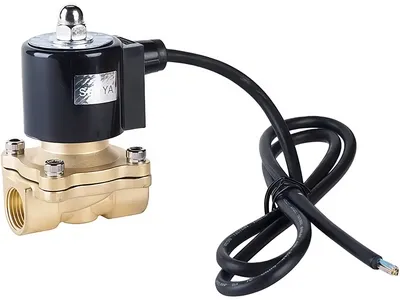

Brass 2/2-Way Solenoid Valve, 2W-W Series

2W-W Series Brass 2/2-Way Solenoid Valve

  • Direct Acting, Normally Closed
  • Port Size: 1/8"–2"
  • Fluid Temperature: -5°C to 80°C (120℃ optional)
  • Operating Pressure: 0–1.0MPa
  • Media: air, water, oil, gas

2W-W series solenoid valve is a waterproof IP68-rated valve engineered for outdoor and underwater applications such as musical fountains, landscape water features, and irrigation systems. This solenoid valve is built with corrosion-resistant materials and a fully sealed waterproof coil, ensuring stable operation in harsh environments and reducing maintenance costs. This solenoid valve is available in port sizes from 1/8 in to 2 in with BSP or NPT threads, ensuring reliable long-term performance.

Request a Quote
PDF icon
Features
  • Zero-pressure start, quick reaction time
  • Higher capacity than the pilot-operated type
  • Reliable, proven design with high flows
  • Fully waterproof coil design allows complete submersion
  • Ideal for musical fountains and outdoor applications
  • Optional sealing kits available for high-temperature operation
Applications
  • Car wash
  • Laundry equipment
  • Air compressors
  • Industrial water control
  • Pumps
  • Water treatment system
  • Musical fountains
Specifications
Category 2/2-way solenoid valves
Mode of operation Direct acting Port size 1/8"–2"
Series 2W Function Normally closed (NC)
Body material Brass Wiring Flying leads/DIN connector/Waterproof coil
Control method Solenoid valve Protection level  IP68
Operating pressure 0-1.0MPa Mounting Bracket required
Sealing material NBR, Viton, EPDM, Silicone Recommended installation method Horizontally
Fluid temperature -5°C to 80°C (120℃ optional) Thread options BSP, NPT thread
Videos
    • Videos

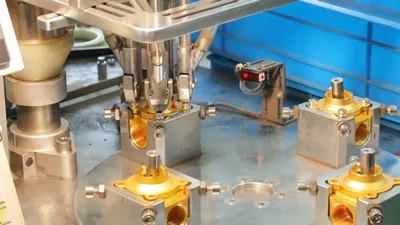

      Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.

    • Videos

      Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.

    • Videos

      Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.

    • Videos

      Leak testing using the water immersion method to ensure zero leakage under continuous operation.

    • Videos

      Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
Related Solenoid Valves
View All
Why Choose SENYA’s Solenoid Valves
  • Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
  • Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
  • Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
Other Categories
View All
Specialized in Solenoid Valves &
Pneumatic Components Manufacturing
SENYA specializes in the engineering and manufacturing of solenoid valves and pneumatic components. With strong R&D capabilities and advanced production facilities, we develop standard and customized solutions to meet demanding industrial requirements. Our strict quality system includes 30 quality inspections and performance tests, ensuring every product delivers long-term reliability.
    • Icon
      2004

      SENYA Was Founded

    • Icon
      2,000+

      Standard Components in Stock

    • Icon
      5,000,000+

      Units Produced Annually

The 2/2-way solenoid valve is the most common type of valve used to control fluid on/off by energizing or de-energizing the coil. It is available in normally closed (NC) and normally open (NO) types. According to their mode of operation, solenoid valves can be classified as:

  • Direct-acting solenoid valve: Has a simple structure and fast response (10–50 ms), suitable for low pressure and small flow.
  • Pilot-operated solenoid valve: Uses the pressure of the media to assist operation, suitable for high-pressure and large-flow applications (50–300 ms).

Directional control valve (typically 3/2-way or 5/2-way) is used to change the direction of the fluid flow. They usually adopt a spool or rotary structure and have a switching time of 20–500 ms. Selection of media, flow pressure, response time, and other factors will affect the valve's performance. Please contact us if you are having trouble choosing the solenoid valve models.

Yes. The solenoid valve can be easily cleaned by unscrewing the four bolts.

80% of the solenoid valve is made of durable metal (e.g., brass, stainless steel, cast aluminum, and cast iron), so you only need to change the rubber seal and the coil, which are prone to wear.

It is recommended to choose carefully based on actual site conditions and pressure/flow requirements.

  • Direct-acting solenoid valve: Has a simple structure and low maintenance, but has higher impurities. It is suitable for a high-response environment with a pressure of 1.0MPa or lower.
  • Pilot-operated solenoid valve: Has a double-layer structure, which is suitable for higher pressure (up to 1.6MPa) and larger flow.
