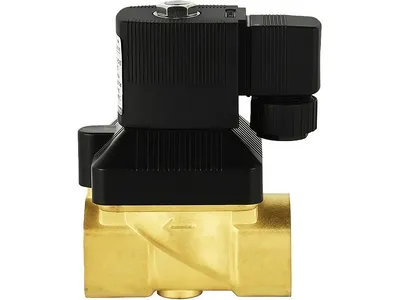

SY223 Series Brass 2/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/4"–2"
- Fluid Temperature: -5°C to 80°C (-5℃ to 120℃)
- Operating Pressure: 0.07–1.6MPa
- Media: air, water, oil, gas
SY223 series is a pilot-operated, normally closed 2/2-way brass solenoid valve designed for small industrial spaces, with a 40% volume reduction compared to traditional valves of the same caliber. The valve’s innovative internal mechanism supports 360° omnidirectional installation, unlike traditional solenoid valves, which require directional installation. This design greatly improves the solenoid valve adaptability in complex pipelines and limited spaces.
- 10 mm wide passageway ensures high flow capacity, smooth operation, and high flow
- Optional high-temperature sealing materials (e.g., NBR, EPDM, Viton) extend the valve’s service life
- No water hammer effect (hydraulic shock) or vibration interference, ensuring stable and reliable operations
- The coil is fully encased in thermosetting plastic, providing excellent insulation and protection
- Made of durable material and suitable with multiple media, with low maintenance requirements
- Handheld device and portable machinery
- Compact industrial machinery and automation systems
- Compressed air control systems
- Water treatment systems
- Fluid control equipment

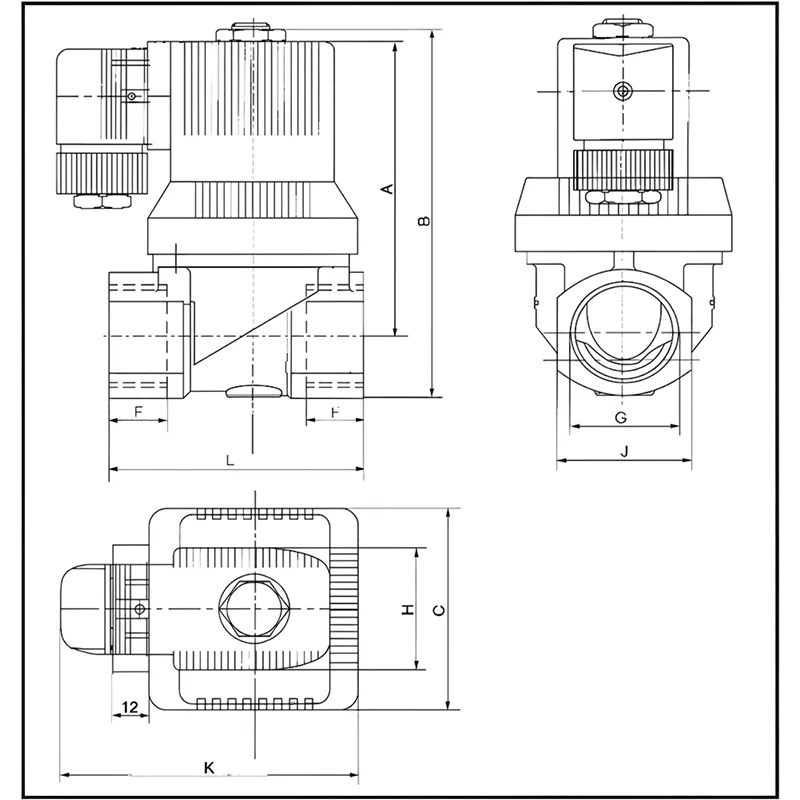

| Model | G | C | F | L | J | A | B | H | K |
|
|
1/4" | 45 | 16 | 52 | 27 | 82 | 96 | 40 | 80 |
|
|
1/2" | 45 | 16 | 52 | 27 | 82 | 96 | 40 | 80 |
|
|
3/4" | 45 | 16 | 63 | 31 | 82 | 96 | 40 | 80 |
|
|
1" | 65 | 18 | 82 | 41 | 96 | 117 | 40 | 90 |
|
|
1/4" | 96 | 20 | 132 | 58 | 112 | 145 | 40 | 132 |
|
|
11/2" | 96 | 20 | 132 | 58 | 112 | 145 | 40 | 132 |
|
|
2" | 111 | 22 | 160 | 70 | 125 | 166 | 40 | 160 |
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/4"–2" |
| Series | SY223 | Function | Normally closed (NC) |
| Body material | Brass | Wiring | DIN connector |
| Control method | Solenoid valve | Protection level | IP65 |
| Operating pressure | 0.07-1.6MPa | Mounting | Bracket required |
| Sealing material | NBR, EPDM, Viton | Recommended installation method | Free-mounting in any angle |
| Fluid temperature | -5°C to 80°C (-5℃ to 120℃) | Thread options | BSP, NPT thread |
-
Automated precision machining ensures each component is manufactured to exact specifications, which will extend product lifespan.
-
Precision machining of solenoid valve provides automatic cutting with high accuracy. The 5-axis machining combined with high-precision surface polishing guarantees exceptional concentricity and response up to milliseconds.
-
Fully automatic high/low-pressure detection equipment to detect the solenoid valve’s air tightness with high accuracy.
-
Leak testing using the water immersion method to ensure zero leakage under continuous operation.
-
Each solenoid valve undergoes air outlet testing by being submerged in water to ensure zero leakage and reliable sealing.
- Strict quality control: Each valve undergoes 30 quality inspections from raw material to final product.
- Swift delivery: Fast delivery supported by a sufficient inventory of semi-finished products to meet urgent orders.
- Cost-effective valve: Optimized engineering delivers the best value for equal quality levels in the industry.
