AC Series

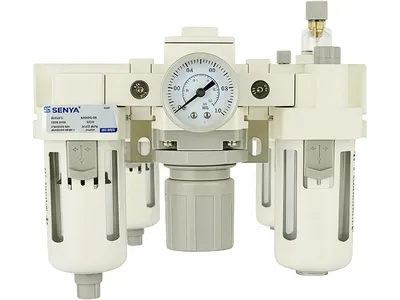

Filter Regulator Lubricator Unit (FRL Unit)
3-in-1 air preparation unit for filtering, regulating and lubricating compressed air to ensure optimal performance in pneumatic systems- Compressed Air Treatment Unit/Air Preparation Unit
- Port Size: 1/4"–1"
- Filtration Accuracy: 40µm (5µm, 1µm optional)
- Working Temperature: 5℃ to 60℃
Features
- Integrated design combining air filtration, regulation, and lubrication
- Pressure adjustment knob with locking nut for precise and tamper-proof control
- Analog ring-pressure gauge that is clear and easy to read
- The filtered water is collected in the water cup, and the metal housing protects the cup against physical impact
- Optional manual or automatic drainage configuration
- Filter accuracy available in 1μm, 5μm, and 40μm levels
- Compact and easy to install and use
- Push-in automatic locking structure prevents adjustment deviation caused by external interference
- Low pressure drop and high water separation efficiency
- Aluminum protective shell for effective impact resistance
Specifications
| Category |
|
| Operating pressure | 0-1.0MPa |
| Filtration accuracy | 40µm (5µm, 1µm optional) |
| Working temperature | 5℃ to 60℃ |
| Port size | 1/4"–1" |
Why Choose SENYA?
- High cost-effectiveness: Mass production reduces costs, saving 30%-50% compared to imported brands
- Flexible customization: SENYA provides you with drawing/sample development to meet custom requirements (e.g., high-temperature or explosion-proof)
- Factory inspection support: Customers are welcome to visit our production facilities and observe our production process and quality control procedures to verify our capabilities firsthand
