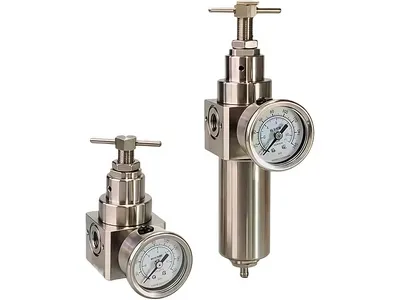

SS Series
Stainless Steel Air Preparation Unit
Compressed air treatment unit combining air filtration, pressure regulation and lubrication functions into one compact unit- Port Size: 1/4"–1"
- Filtration Accuracy: 5µm (40µm optional)
- Working Temperature: -5℃ to 100℃ (no freezing)
Features
- Built with SUS316 stainless steel, which is suitable for high-pressure, with corrosion- and chemical-resistant properties
- Performs exceptionally in chemical facilities and outdoor installations
- Suitable for the semiconductor manufacturing
- Efficiently removes moisture and particles to maintain air purity
- Lightweight and compact design saves installation space
Specifications
| Model |
|
|
|
|
|
| Port size | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Filtration accuracy | 5µm (40µm optional) |
5µm (40µm optional) |
5µm (40µm optional) |
5µm (40µm optional) |
5µm (40µm optional) |
| Working fluid | Compressed clean air | Compressed clean air | Compressed clean air | Compressed clean air | Compressed clean air |
| Body material | SUS316 | SUS316 | SUS316 | SUS316 | SUS316 |
| Lubrication | Not required | Not required | Not required | Not required | Not required |
| Working pressure | 0-2.0MPa (0-290Psi) |
0-2.0MPa (0-290Psi) |
0-2.0MPa (0-290Psi) |
0-2.0MPa (0-290Psi) |
0-2.0MPa (0-290Psi) |
| Max. operating pressure | 3.0MPa (435Psi) |
3.0MPa (435Psi) |
3.0MPa (435Psi) |
3.0MPa (435Psi) |
3.0MPa (435Psi) |
| Working temperature | -5℃ to 100℃ (no freezing) |
-5℃ to 100℃ (no freezing) |
-5℃ to 100℃ (no freezing) |
-5℃ to 100℃ (no freezing) |
-5℃ to 100℃ (no freezing) |
| Bowl material | SUS316 | SUS316 | SUS316 | SUS316 | SUS316 |
| Filter element material | SUS316 | SUS316 | SUS316 | SUS316 | SUS316 |
| Standard drain | Semi-automatic drain | Semi-automatic drain | Semi-automatic drain | Semi-automatic drain | Semi-automatic drain |
| Optional accessories | Mounting bracket, screws*2 | Mounting bracket, screws*2 | Mounting bracket, screws*2 | Mounting bracket, screws*2 | Mounting bracket, screws*2 |
Why Choose SENYA?
- High cost-effectiveness: Mass production reduces costs, saving 30%-50% compared to imported brands
- Flexible customization: SENYA provides you with drawing/sample development to meet custom requirements (e.g., high-temperature or explosion-proof)
- Factory inspection support: Customers are welcome to visit our production facilities and observe our production process and quality control procedures to verify our capabilities firsthand
