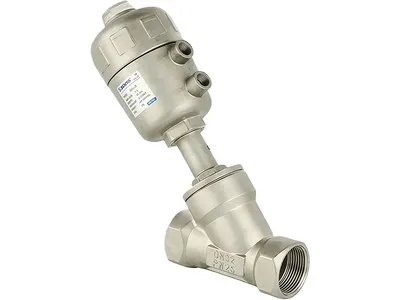

Pneumatic Angle Seat Valve
- Direct Acting, Double Acting
- Port Size: 1/2"–2"
- Fluid Temperature: -5°C to 180°C
- Operating Pressure: 0–1.6MPa
- Media: air, water, oil, gas, steam
SNAJ series is a sturdy and reliable pneumatic control valve designed for harsh industrial environments. It uses high-performance PTFE sealing and a stainless steel valve body, providing excellent corrosion resistance and durable sealing for continuous leak-free operation. This valve offers two actuation modes: double-acting and spring-return (single-acting), ensuring fast response and low energy consumption. The modular actuator at the top can be equipped with a position feedback sensor for real-time monitoring, allowing easy maintenance without disassembling the valve. With these features, this valve delivers adaptability and dependable operation under continuous operations.
- Available in 304/316 stainless steel, ensuring strong corrosion resistance for humid or chemical environments
- PTFE sealing and coated piston design provide durability, wide media compatibility, and support two-directional flow
- Optional position sensor at the top of the actuator for real-time monitoring without increasing overall size
- 45° flow channel structure with a self-adjusting sealing cap design buffers pressure fluctuations and improves sealing reliability
- Externally piloted pneumatic control to ensure long service life and minimal maintenance
- Angle seat valve body structure achieves high flow, compact size, and quick response
- Standardized connectors allow actuator customization with various port size and pressure levels
-

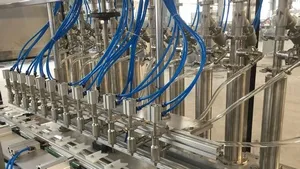

Beverange Filler MachineryThe valve controls the on/off flow of beverage liquids. The stainless steel body ensures the fluid purity and hygiene.
-

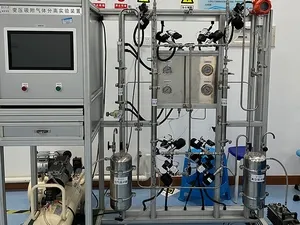

Gas Detection EquipmentThe angle seat valve is ideal for gas detection systems because it controls gas flow without reacting with valve materials.
-

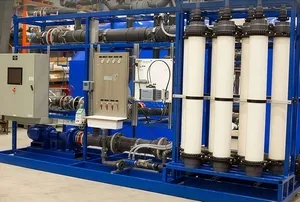

Water Treatment EquipmentBuilt completely with 316 stainless steel, the angle seat valve is completely non-reactive with gases or liquid media, ensuring durability and reliability.
- High cost-effectiveness: Mass production reduces costs, saving 30%-50% compared to imported brands
- Flexible customization: SENYA provides you with drawing/sample development to meet custom requirements (e.g., high-temperature or explosion-proof)
- Factory inspection support: Customers are welcome to visit our production facilities and observe our production process and quality control procedures to verify our capabilities firsthand
