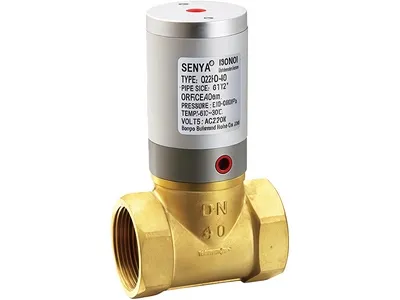

Q22HD Series
Brass 2/2-Way Pneumatic Valve
- Direct Acting, Double Acting
- Port Size: 1/8"–1"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas
Q22HD series pneumatic valve features a unique dual port design, providing both side and top exhaust options to achieve optimized flow performance in limited spaces. This valve meets the international explosion-proof environmental equipment standards for safe operation, and is easy to maintain—a reliable pneumatic control solution compared to traditional valves that are difficult to apply in a hazardous environment.
Features
- Compact pneumatic actuator with dual-threaded ports on the top and side, achieving minimal installation dimensions
- Multiple sealing material options (e.g., NBR or PTFE) for different temperature conditions (80°C/100°C/180°C)
- Non-electric pneumatic control valve suitable for flammable and explosive hazardous areas
- Simple structure, easy maintenance, and quick inspection and replacement for internal components
- Features low-pressure start and high-sensitivity closing, ensuring tight sealing and unrestricted media flow
- Flexible installation at any angle, and reliable dual-direction sealing unaffected by flow direction during operation
- Optimized flow path and exhaust design that minimizes back pressure and enhance response speed
Applications
- Oil and natural gas equipment
- Mining machinery
- Marine and ship systems
- Mobile machinery and vehicles
- Food and pharmaceutical equipment
- Industrial washing equipment
- Petrochemical and metallurgical equipment
- Spray system

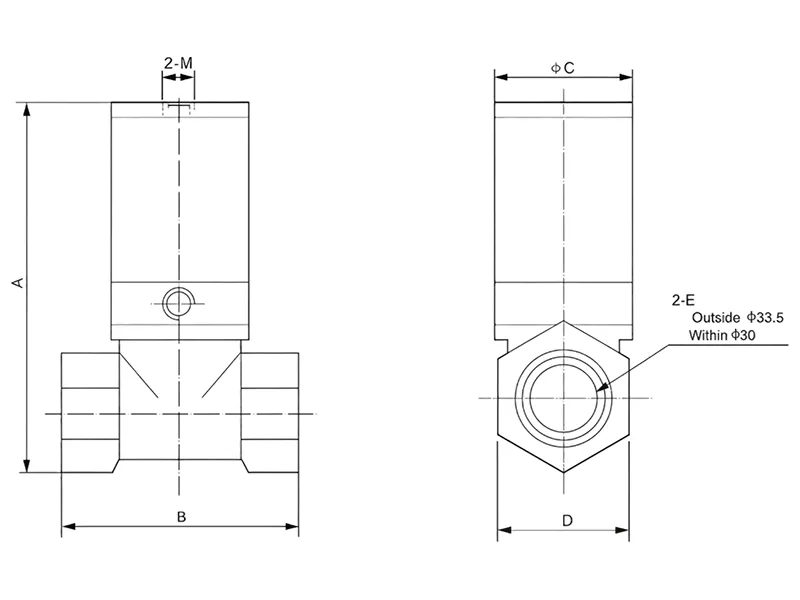

Dimensions (mm)
| Model | A | B | C | D | M | E | Weight (g) |
|
|
96 | 47 | 31 | 26 | G1/8 | G1/2 | 250 |
|
|
102 | 54 | 31 | 33 | G1/8 | G3/4 | 330 |
|
|
115 | 66 | 38 | 39.5 | G1/8 | G1 | 490 |
|
|
143 | 77 | 46 | 48 | G1/8 | G111/4 | 820 |
|
|
160 | 86 | 56 | 54 | G1/8 | G111/2 | 1050 |
|
|
182 | 116 | 69 | 67 | G1/8 | G2 | 1680 |
Specifications
| Category |
|
||
| Mode of operation | Direct acting | Port size | 1/8"–1" |
| Series | Q22HD | Function | Double acting |
| Body material | Brass | Wiring | None |
| Control method | Pneumatic control | Protection level | IP65 |
| Operating pressure | 0-1.0MPa | Mounting | Bracket required |
| Sealing material | NBR, PTFE | Recommended installation method | Horizontally |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
